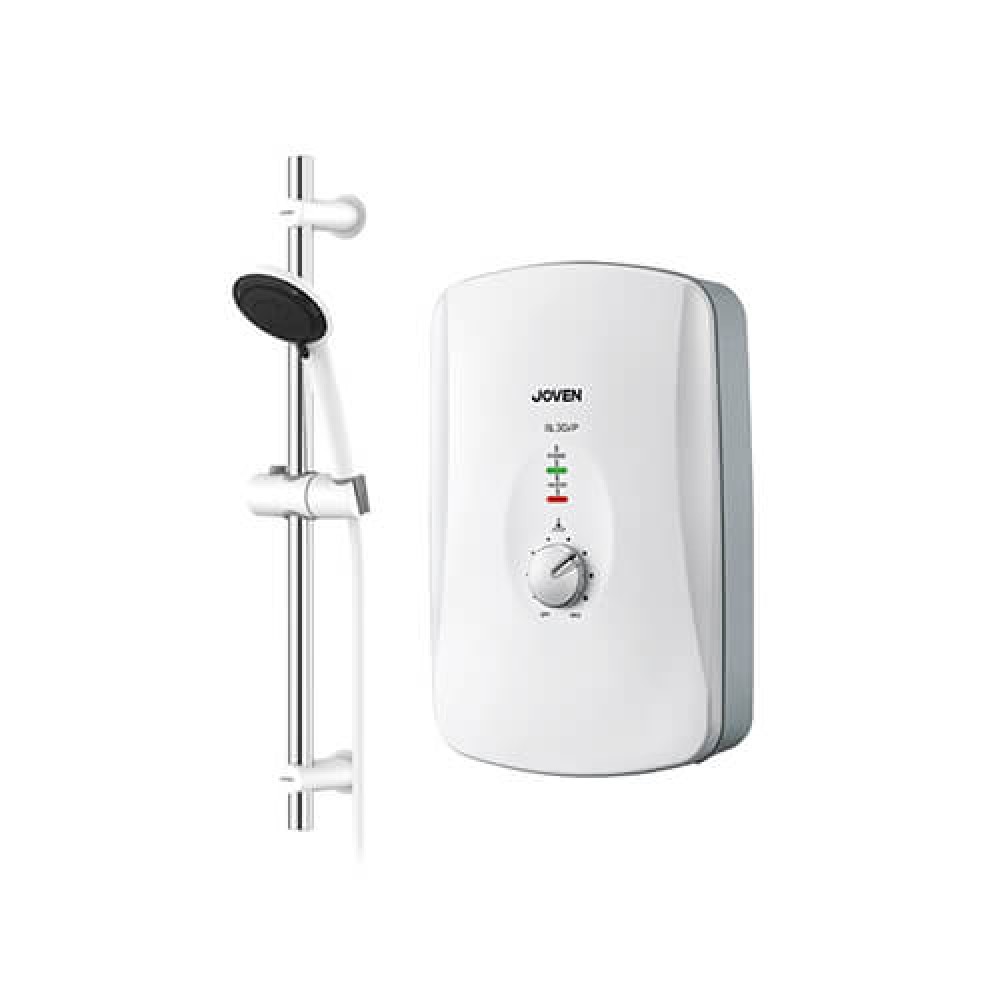

Joven DC Pump Water Heater Inv SL30IP/WHI
Product Description
Product Details Of Joven DC Pump Water Heater Inv SL30IP/WHI
- 1 Year Warranty
- Sleek and Stylish Casing
- Energy Saving Inverter DC Pump 50%
- Silent Below 35dB
- Double Layer 2K Spray Paint Finish with 3 Colour Options
- Stepless Electronic Power Control
- 5 Spray Showerhead
- Slim and Chromed Slider Bar
- ¼ Turn Valve for turn On/Off Shower
- Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose
- Thermostat with Safety Cut-Out
- Single Pole ELCB System with 10mA sensitivity
- Splash Proof IP25 Casing
- SVF Valve With Built-In Filter
Slim, Sleek &
Elegantly Designed
The SL30 series is slim, sleek & elegantly designed to complement your bathroom interiors.
Energy Saving &
SilentPlus Technology
Quiet Operation (Below 35dB)
The Inverter DC Pump Technology gives you 50% energy savings compared to the conventional booster pump and is silent below 35dB giving you the peaceful shower you desire.
Adjust To The Temperature You Desire
Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.
Premium & Long Lasting Colour Finish
Double Layer 2K Spray Paint Finish
For that long lasting colour finish that lasts for years to come, our colour models come with double layer 2K Spray paint finish.
(Colour models only)
SAFETY FEATURES
High Protection Against
Water Splash
Comply with IEC 60529 (IP25) Standard
The casing is sealed to prevent water from accessing the internal parts in-line with splash proof standard.
The Safest Protection
Against Current Leakage
Single Pole EELS | <10mA Standard
Your safety are assured with the industry’s safest EELS system which is 10mA sensitivity. Any current leakage above 10mA, the EELS will cut-out live line at high speed.
Surge Protector
Comply with IEC 61000-4-5 (Level 3)
Protection against power surge which disconnects instantly.
Anti-Scalding
Technology
This Anti-Scalding device will prevent against scalding.
Thermal Cut-Out
Technology
This safety device will interrupt power supply in the event of overheating and prevent fire hazard.
Durable Copper
Heating Element
Reliable, high performance and efficient copper heating element for constant hot water.
Nylon Fibre Tank With
Swirl Technology
Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and prevent electric shock.
SFS Technology
The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.
Triple Reinforced &
Insulated Hose
5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.
SF Valve With Built-In Filter
Turn On/Off the water with the 1/4 turn pattern pending SF Valve with water saving feature and easy clean with built-in filter.
ACCESSORIES
Chrome Slim Slider
Bar Set
With Triple Reinforced Non-Conductive Hose
Adjust your showerhead to the height you desire for maximum comfort. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.
5 Spray Showerhead
Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Screw and Wall Plug
5 sets to mount unit on the wall
Washer
2 pieces to be placed at inlet and outlet as water tight seal
Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action
TECHNICAL SPECIFICATION
Electrical Loading
3.0-5.5kw 220-240Va.c. 50/60Hz
Min. Water Pressure
10kPa / 1.45psi / 0.1 bar
Max. Water Pressure
380kPa / 55psi / 3.8 bar
Min. Water Flow
2 Litres per minute
Max. Water Flow
8 Litres per minute
Water Temp. Control
Stepless Electronic Power Control
Inlet/Outlet Connection
Ø15mm (1/2″ BSP) – Single Point System
Dimensions
237 x 358 x 70 mm
Weight
3.5kg
